9.5" Height Rigid Steel Edging - Weathering

1 review

SKU: RL240WS-Pack

$ 144.05

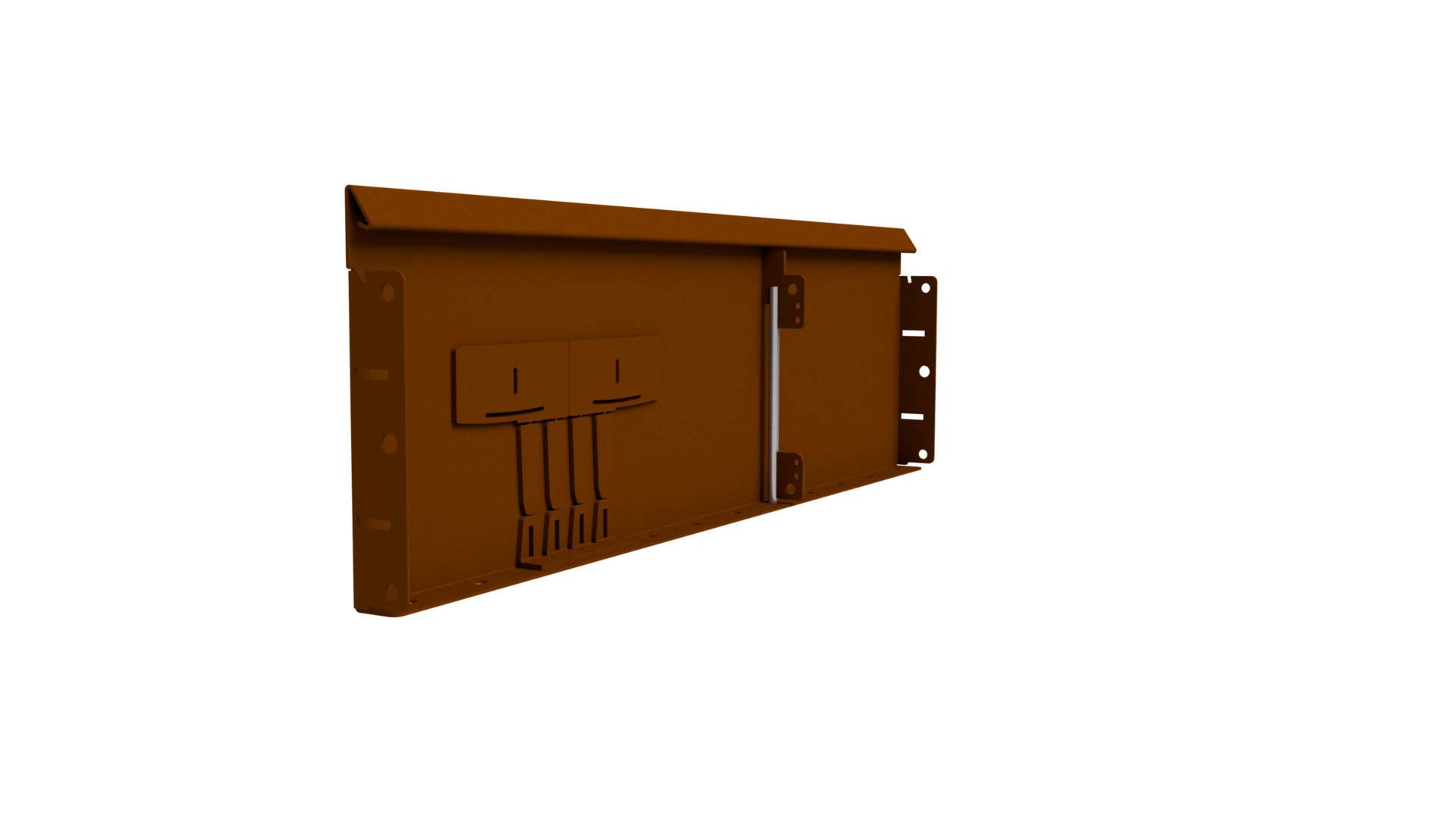

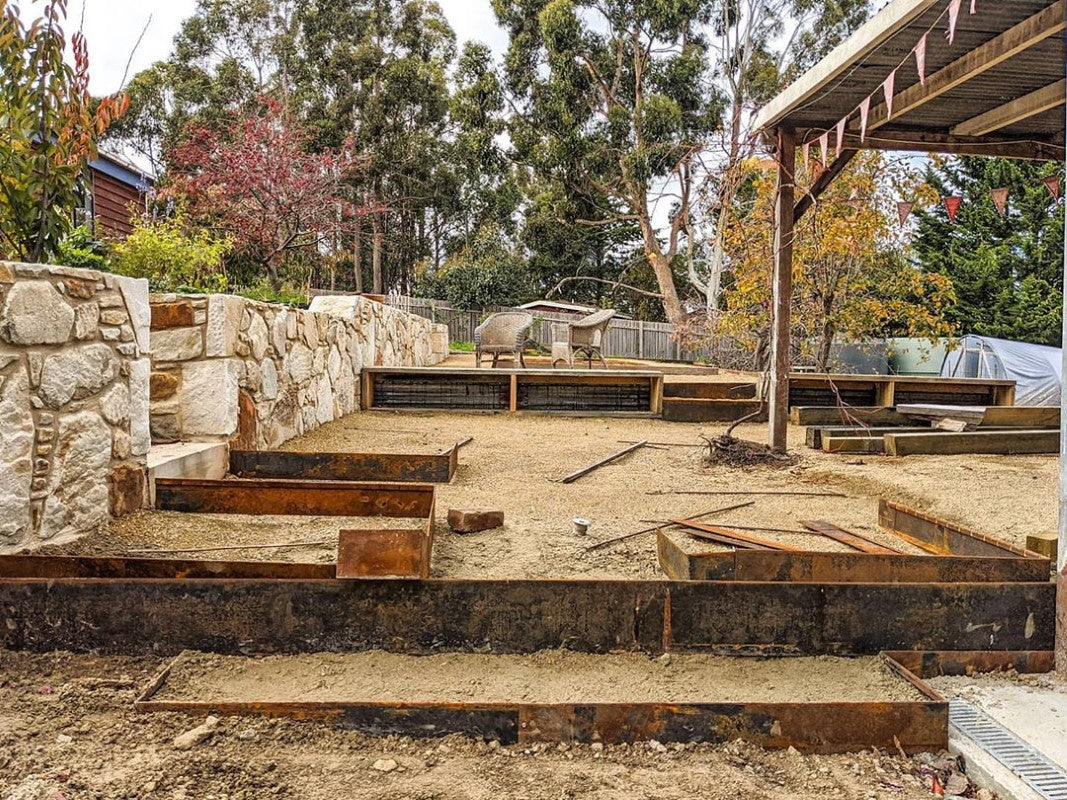

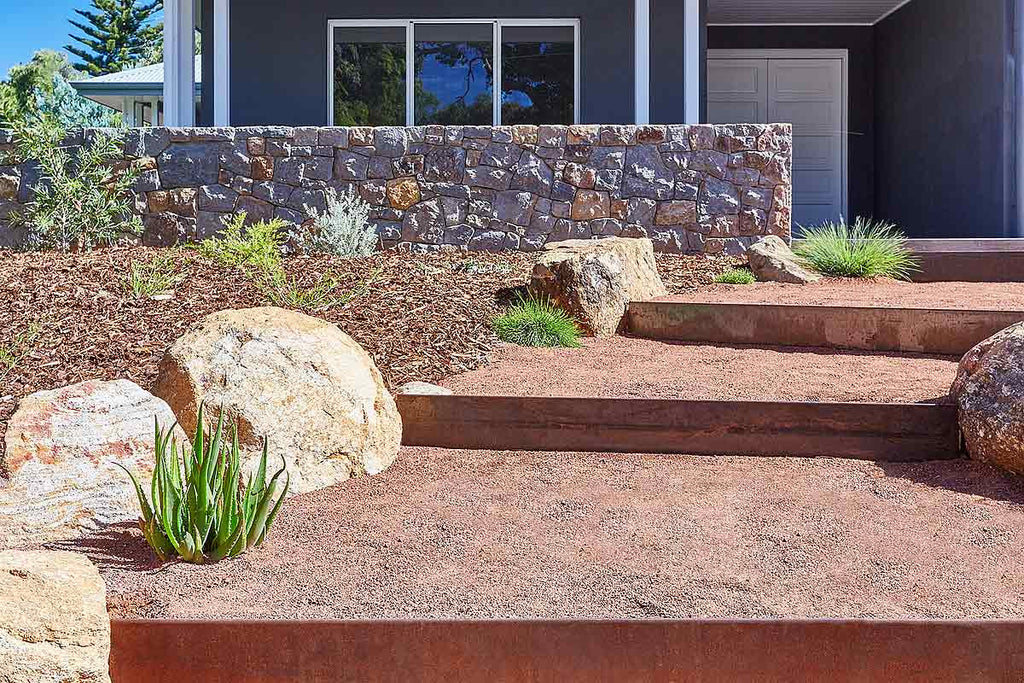

Straightcurve's 9.5" Rigid Weathering Steel Edging allows for perfectly straight edging every time.  Used for barriers and retaining walls, this sturdy edging makes straight lines so easy.  Great for straight lines and geometric designs.

  • Folded lip.  No sharp edges.

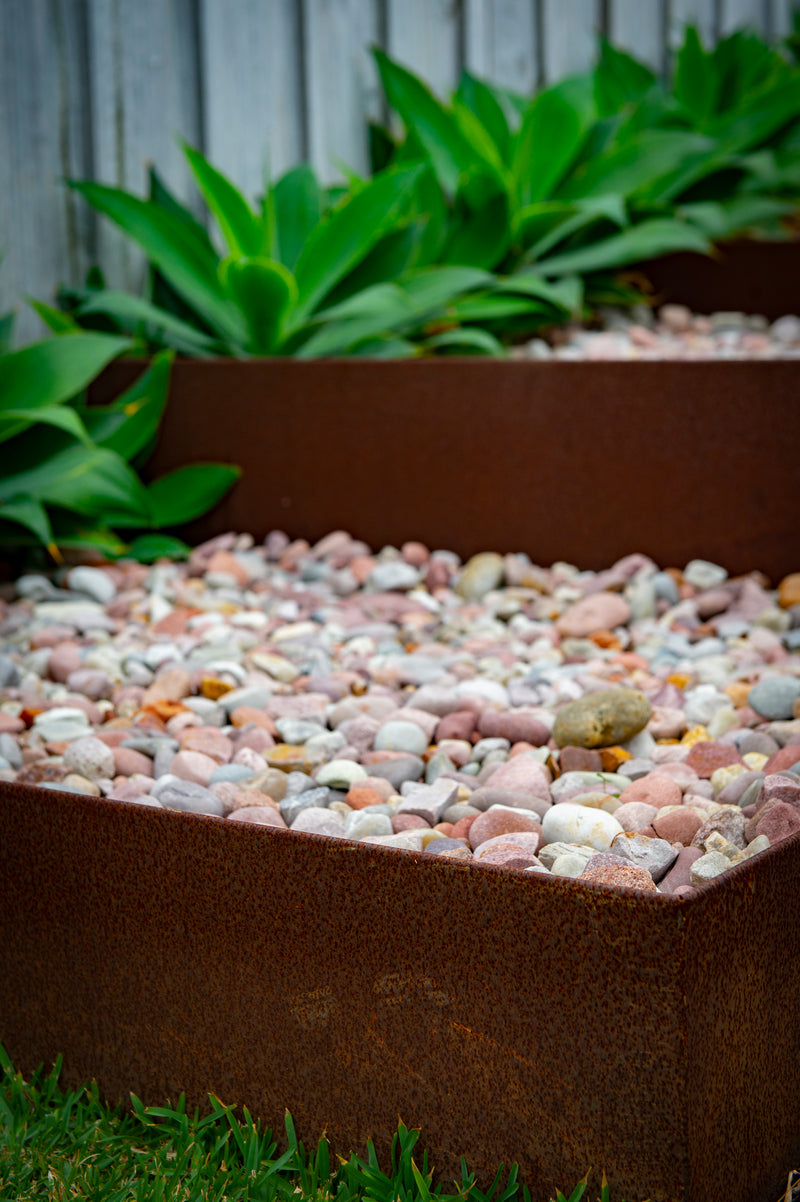

  • Weathering Steel in the style of CorTen forms a beautiful protective rust patina on the outside of the edging creating a modern yet durable space that will last for many years.  Edging arrives prior to rusting occurring and appear in a black/gray color at first.  Rusting time after install will depend on weather conditions in your area.

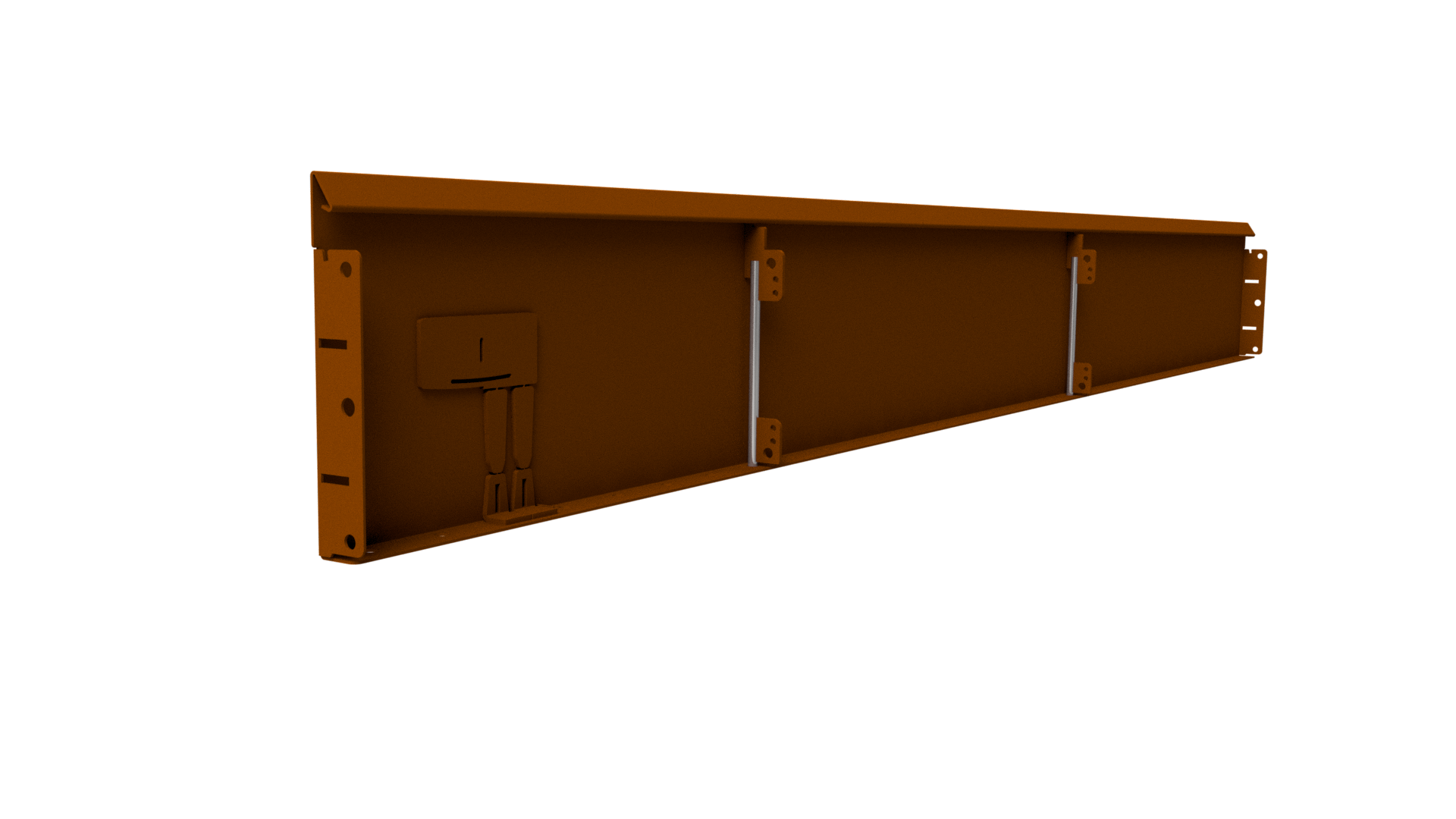

  • 9.5 inch high, 85.04 inch long sections (7 feet).
  • 2 mm thick panel, 8mm top edge.

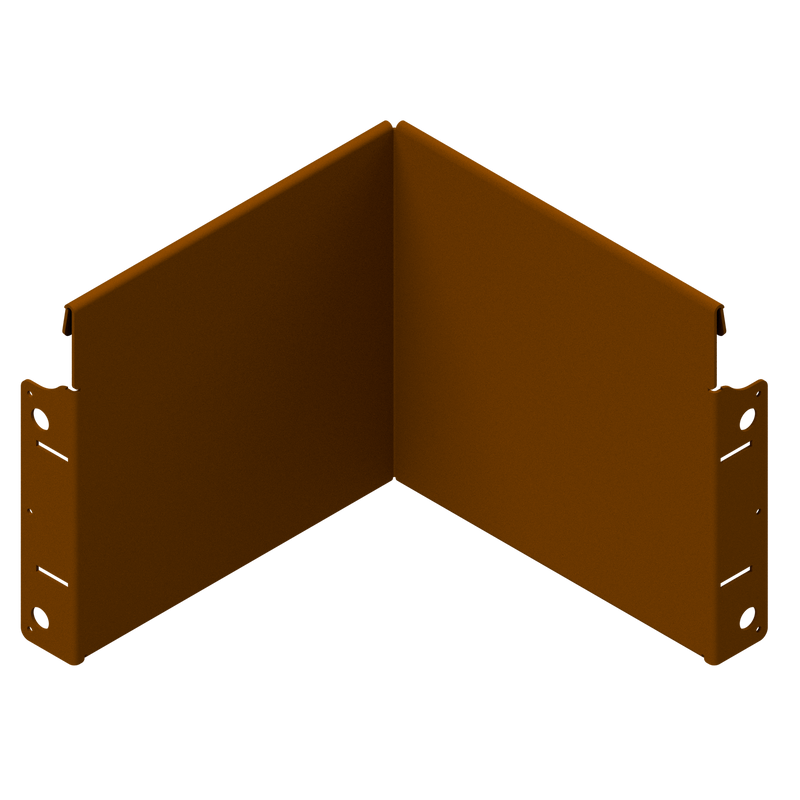

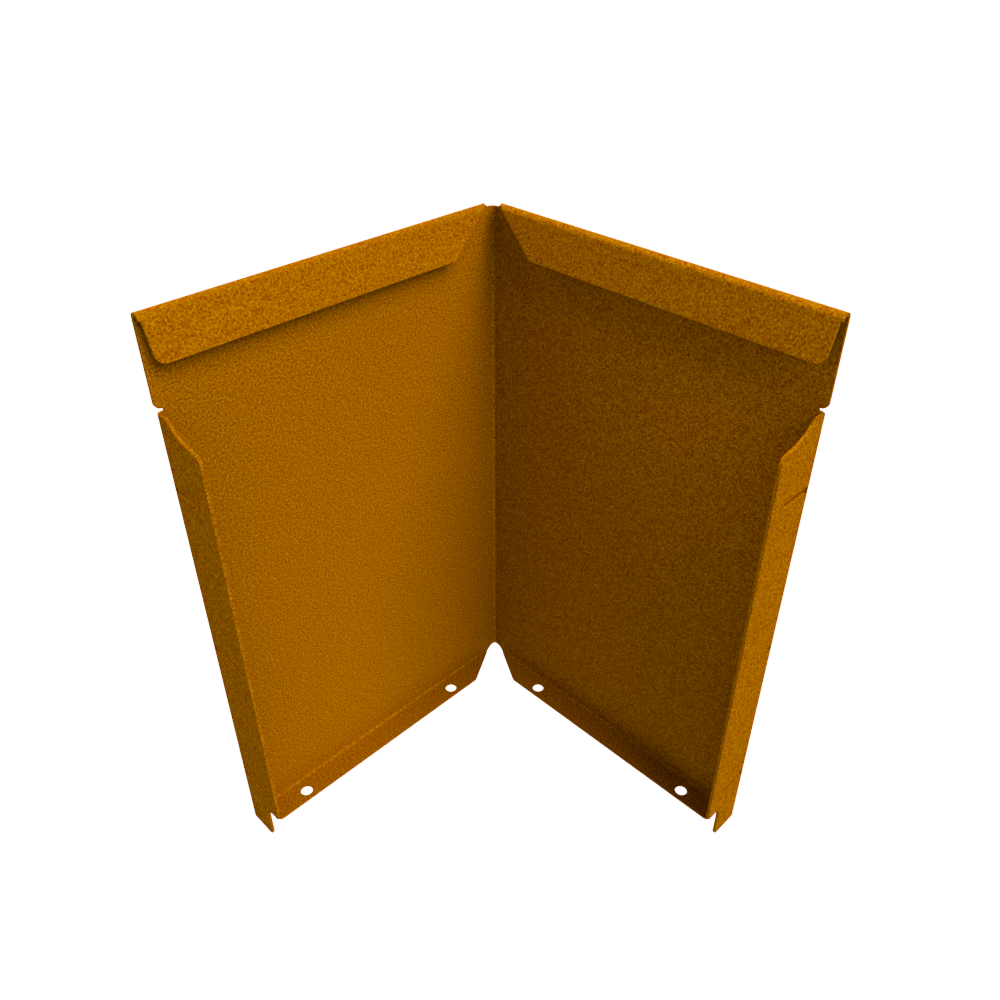

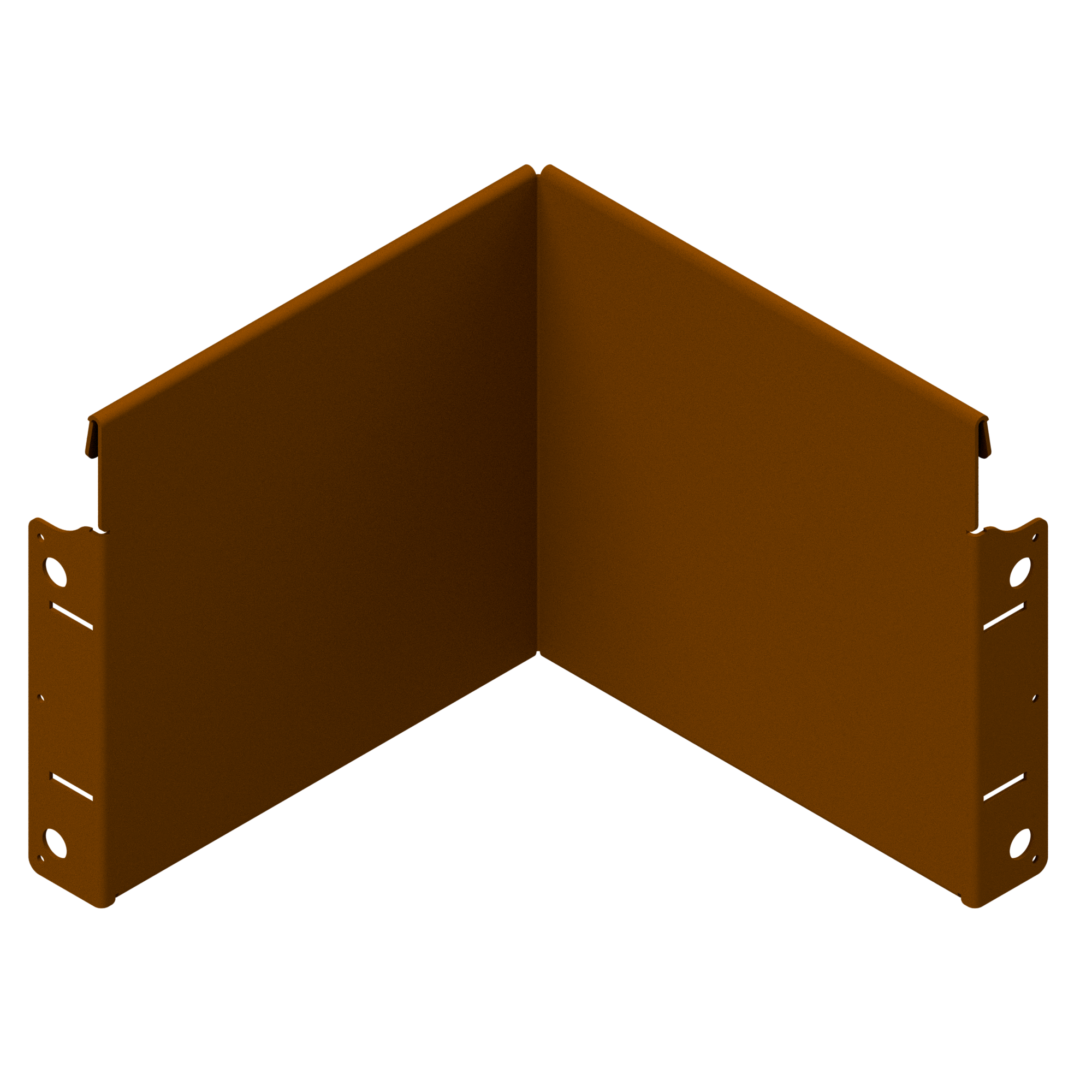

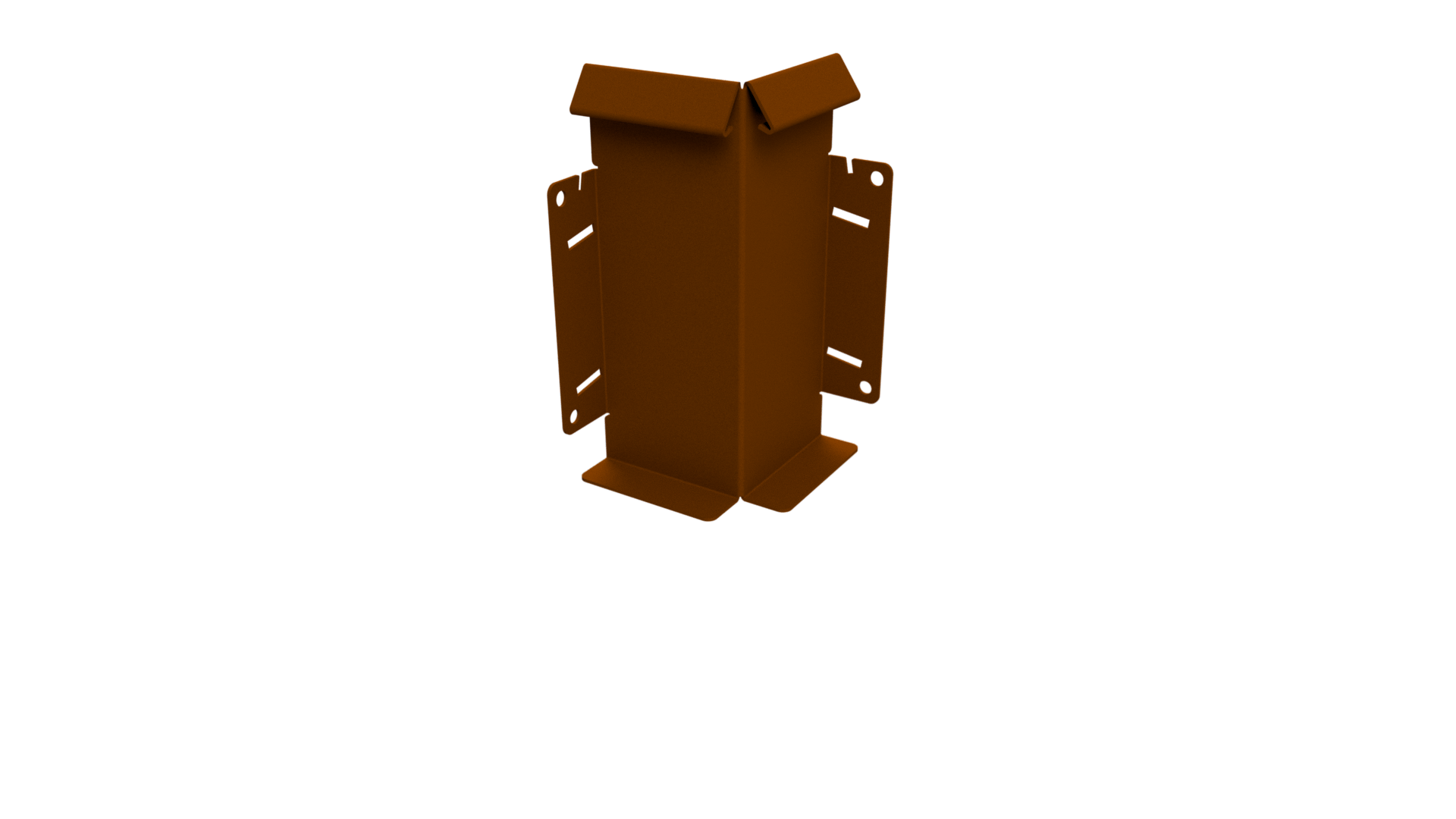

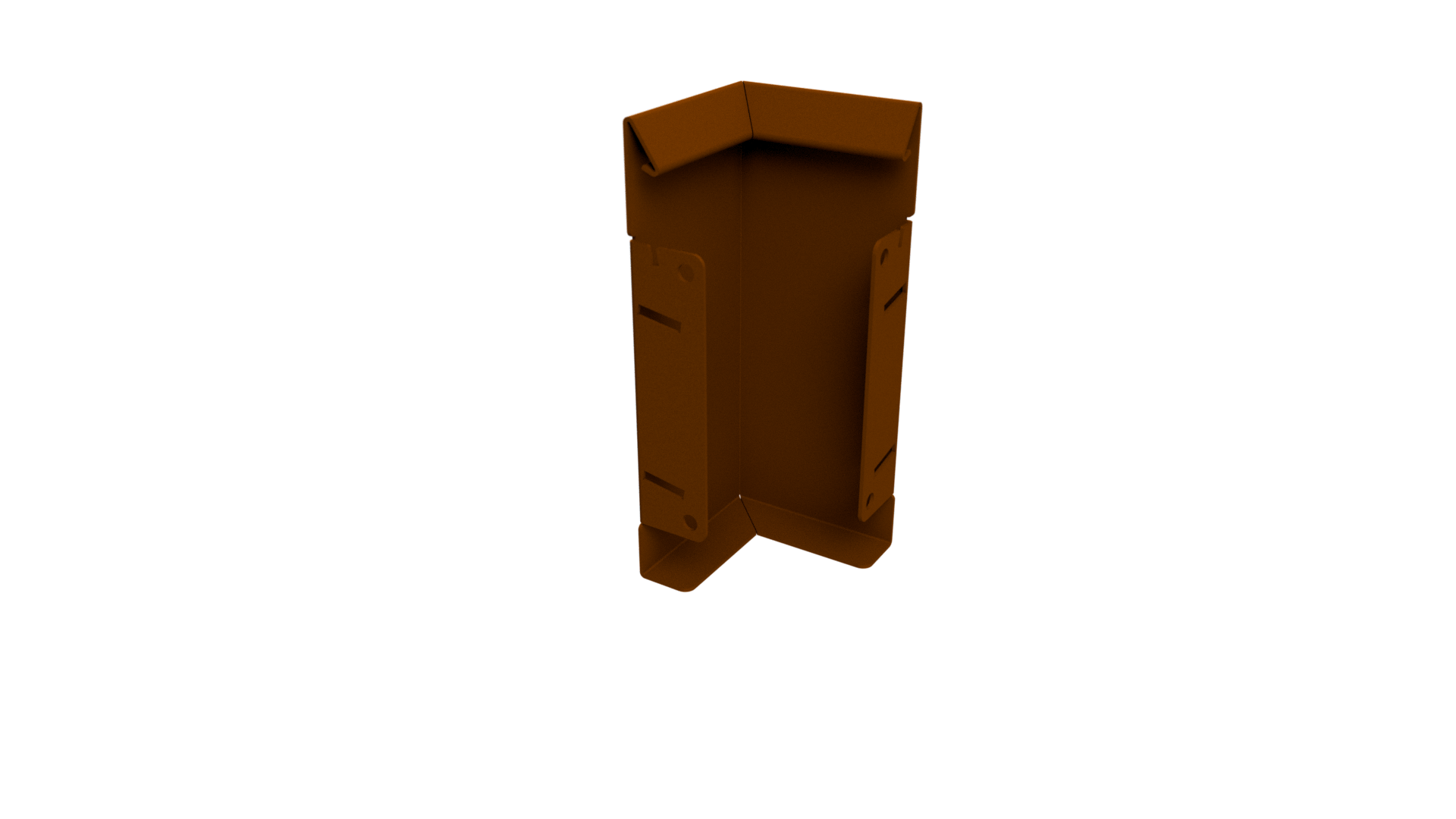

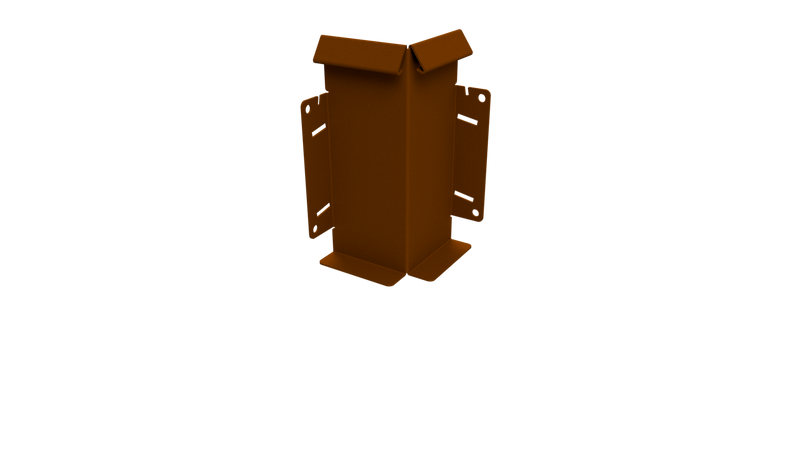

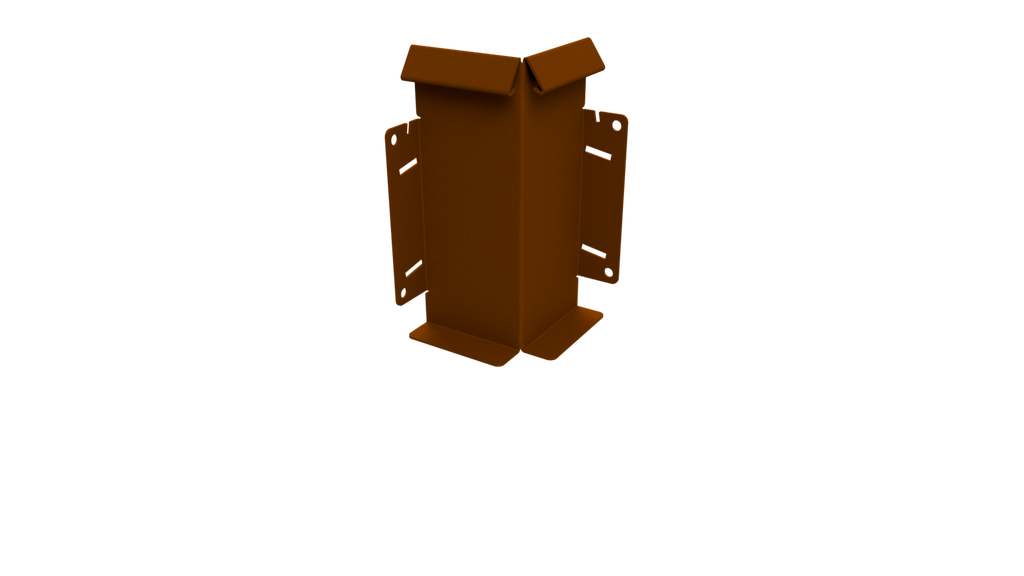

  • Preformed corners are 10 inches each side of the 90 degree bend

What's Included

  • 5 long twisted nails that go in the bottom flange

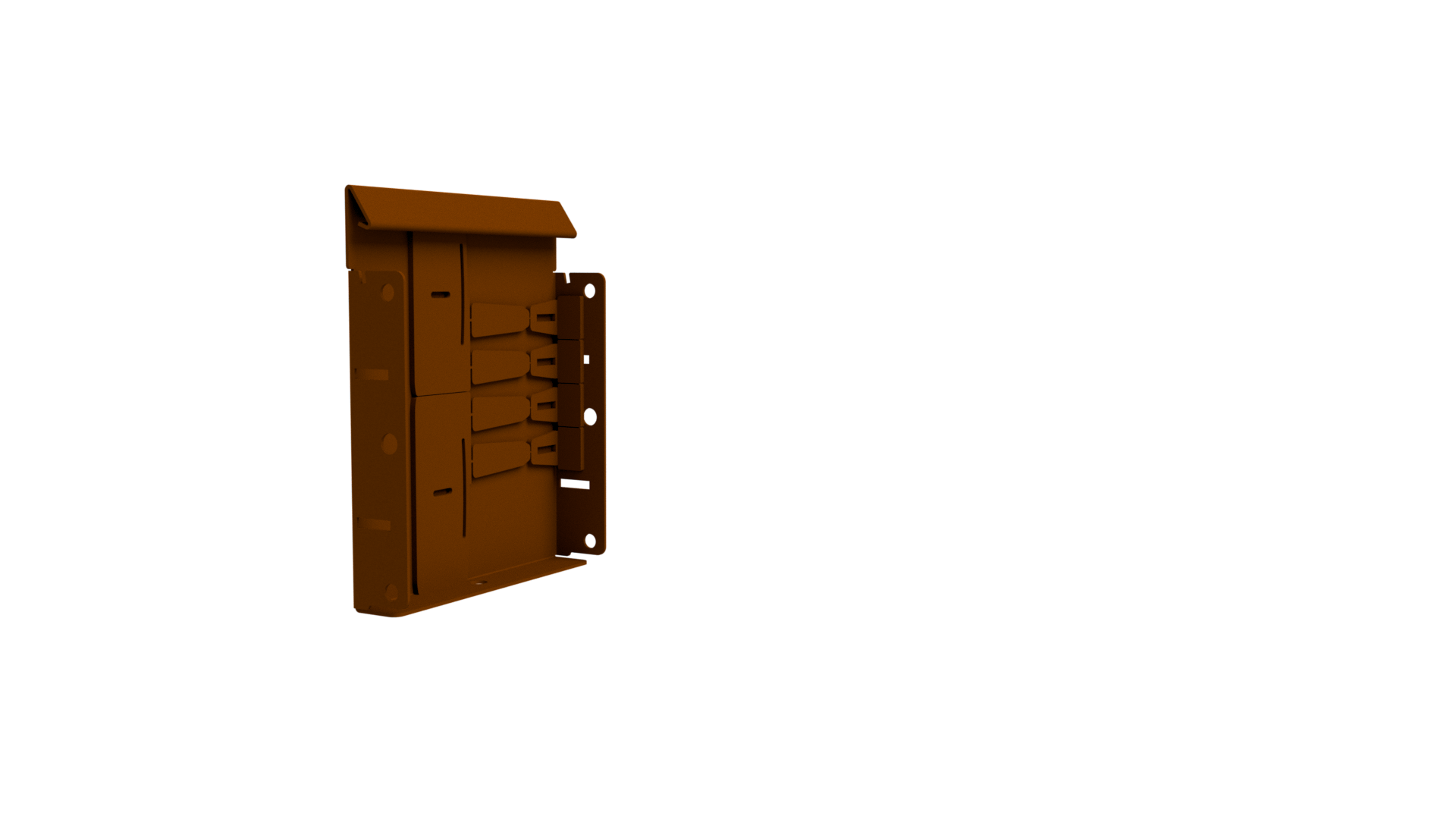

  • Connectors to join one section to the next

What's Not Included

  • Bracing, anchor posts, preformed corners and joining sleeves are all sold separately

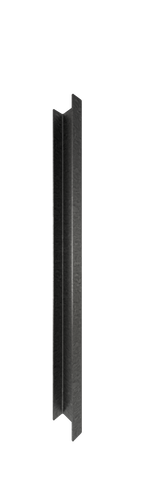

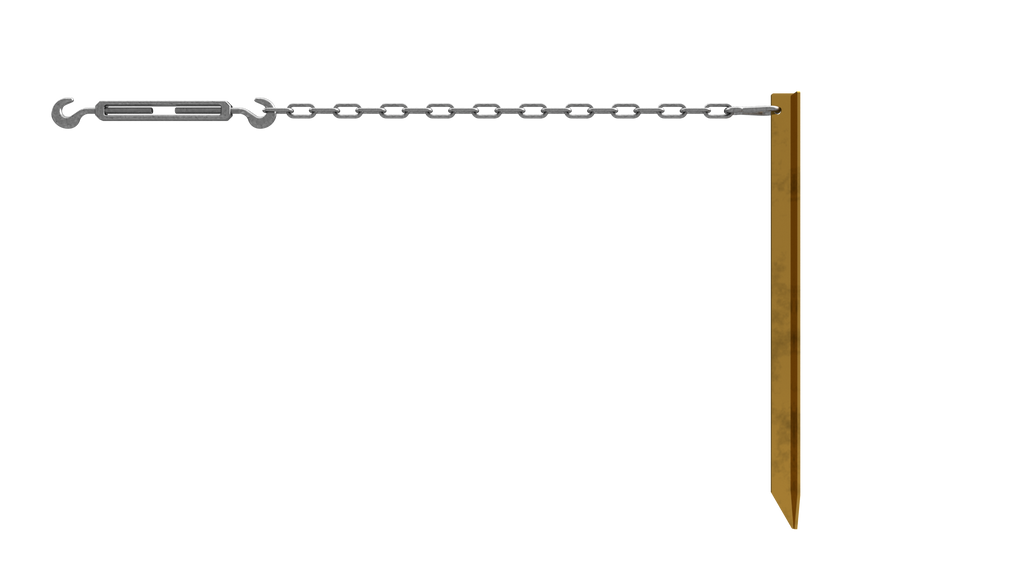

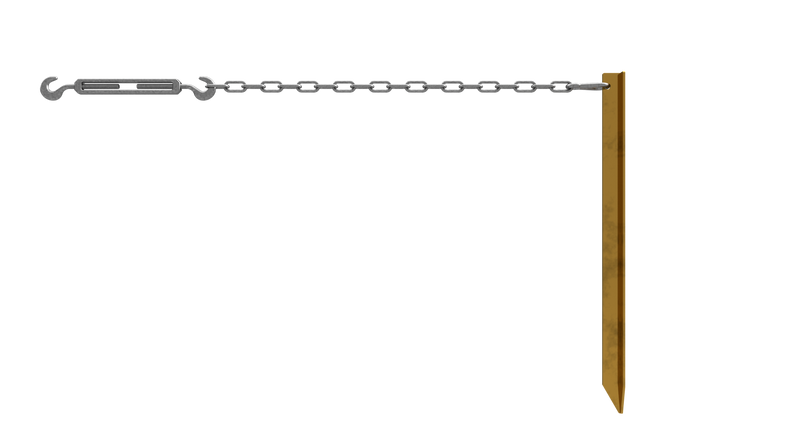

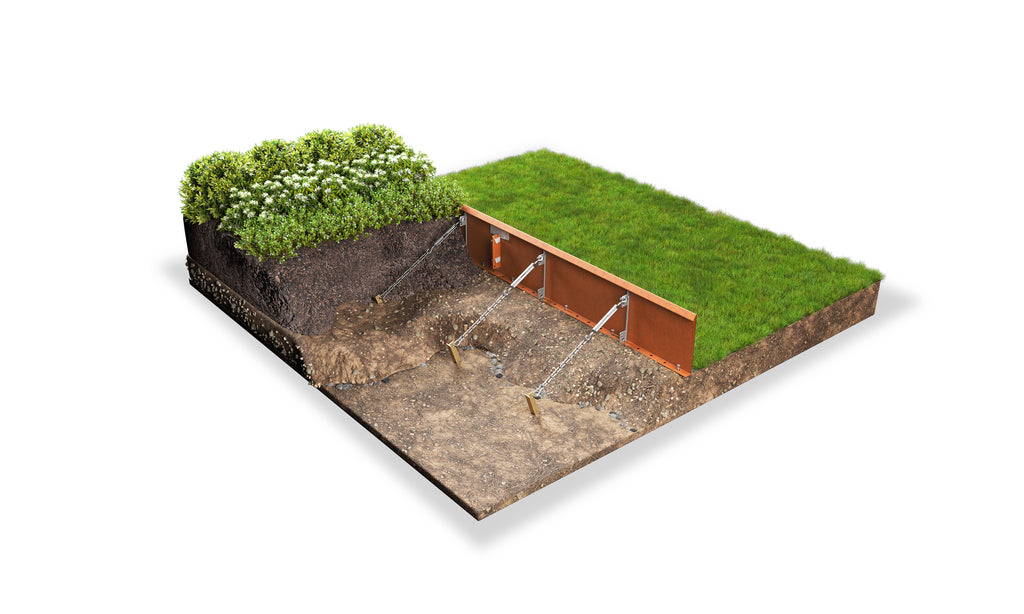

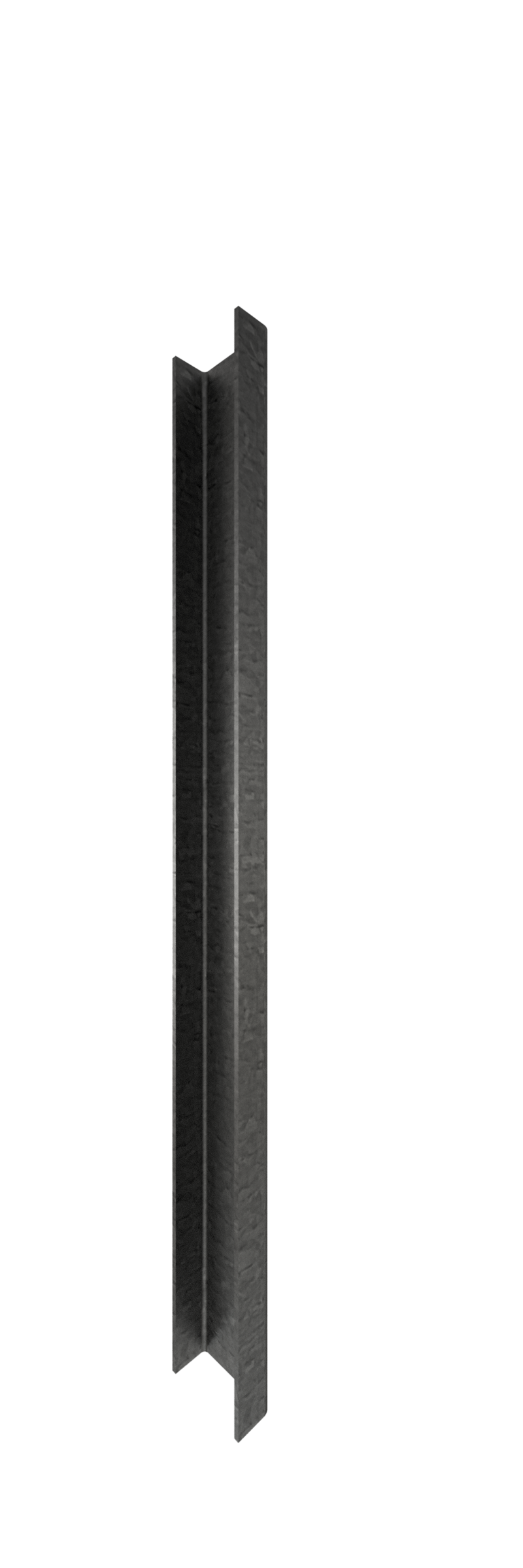

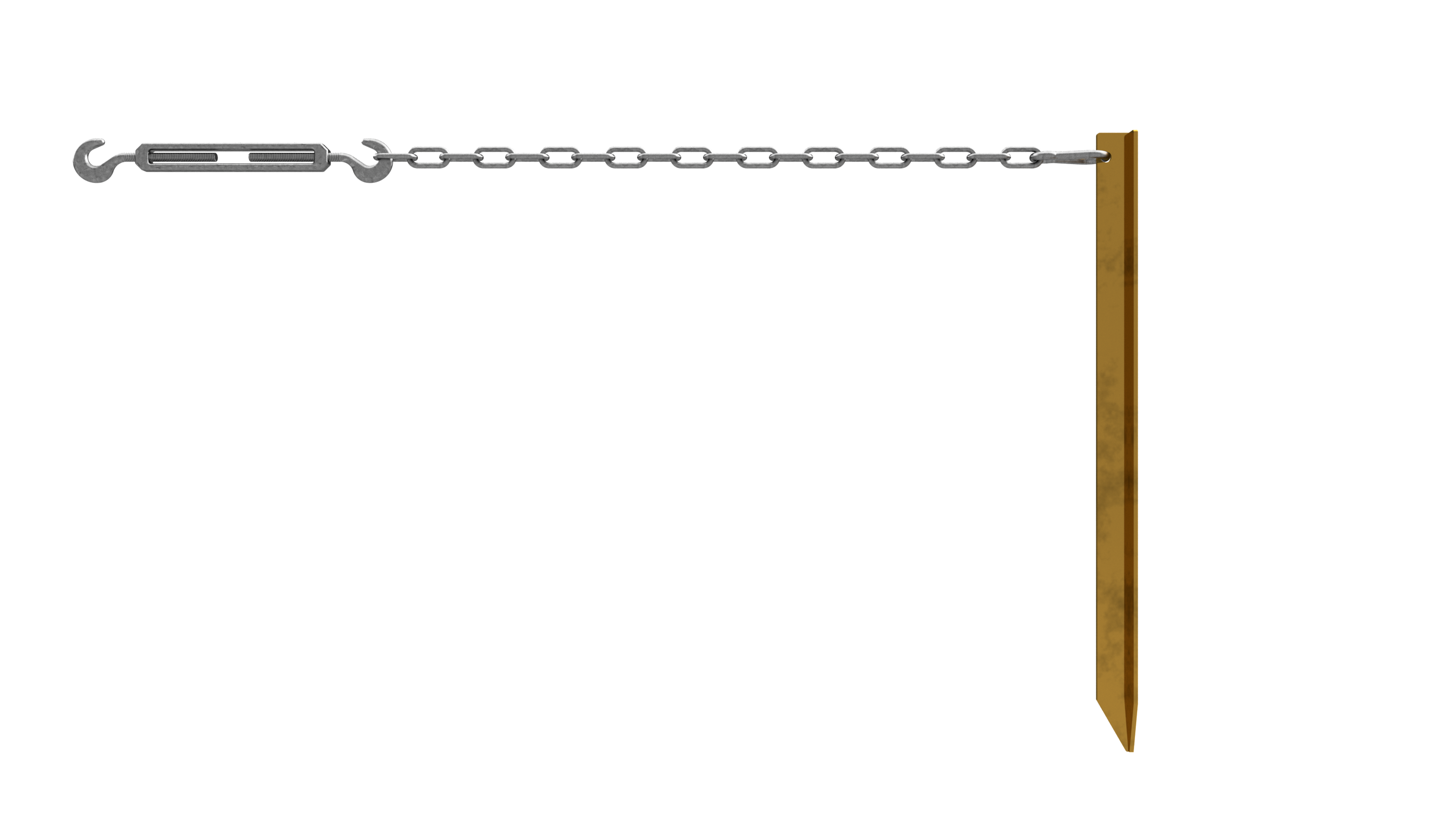

-Choose between the universal bracing system (a tie back system) or the anchor posts system (verical post attached to the back of the edging).  2 per section of whichever style you choose is recommended.

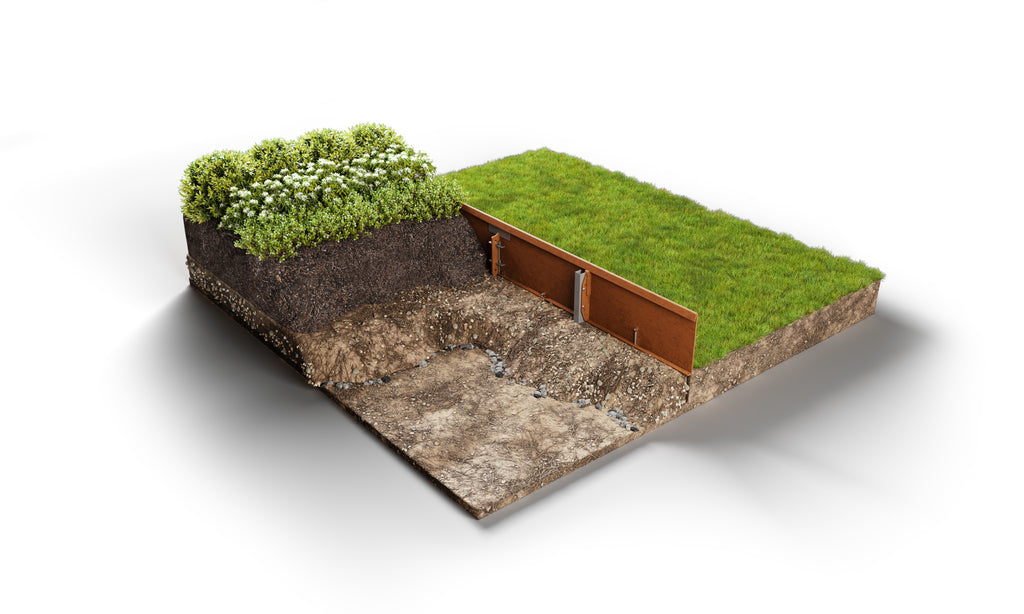

-Typically for the 9.5" edging, the anchor posts are sufficient.

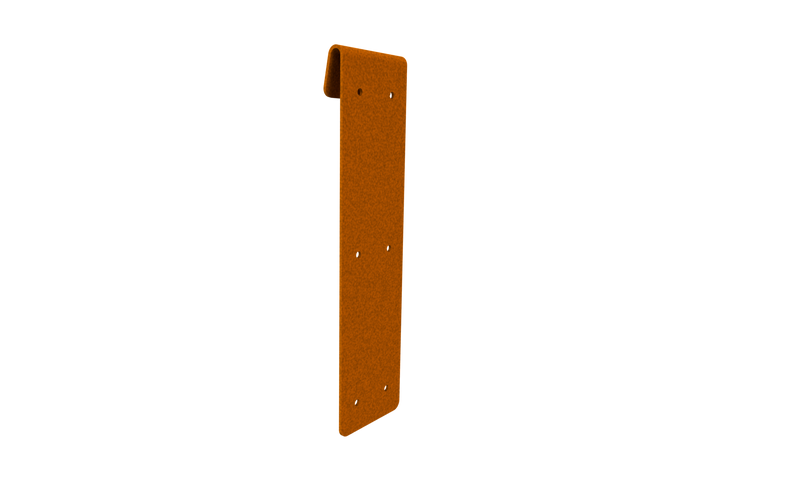

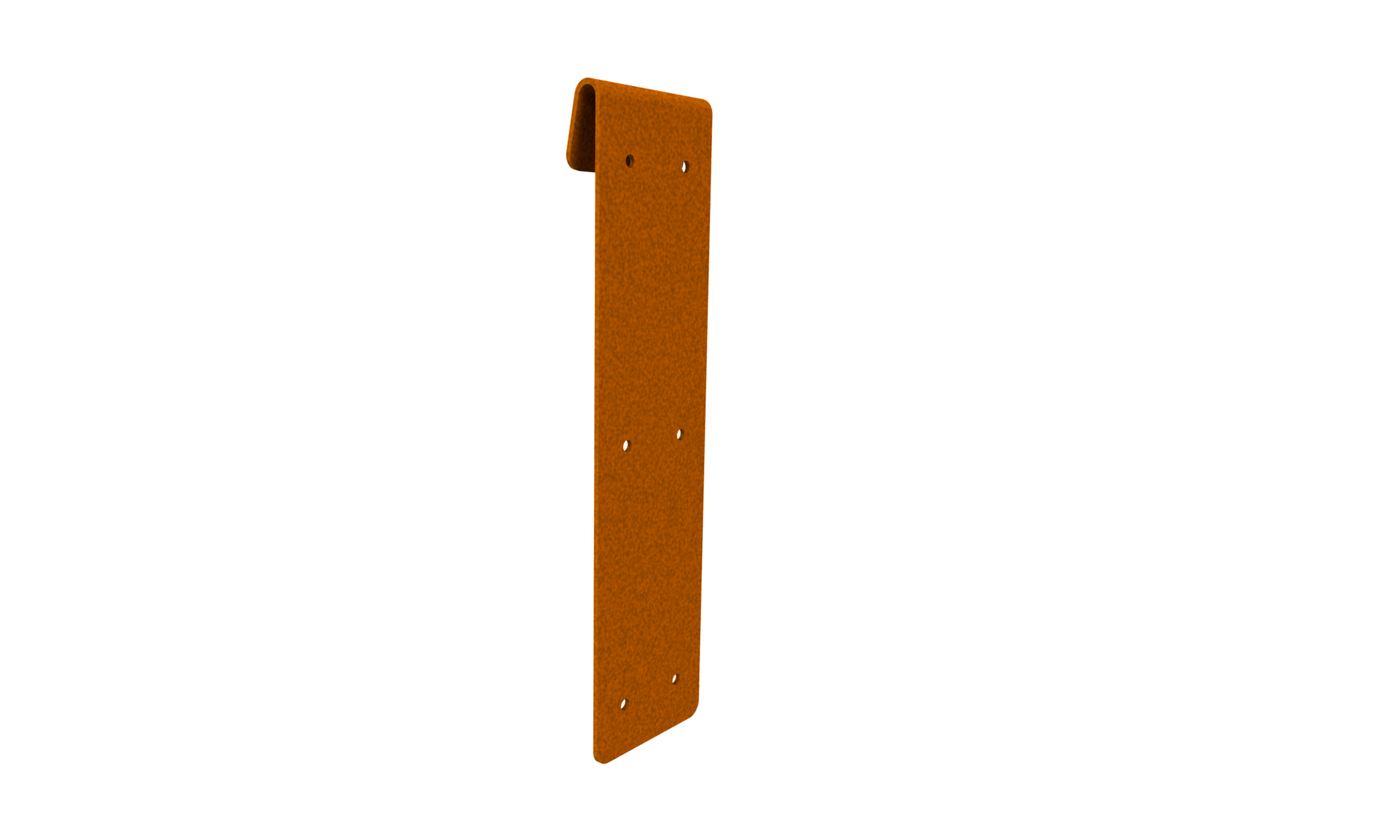

-Joining sleeves are ONLY needed if you are cutting the sections and then need to rejoin them as you have cut off the built in connectors.

Installation Instructions

Download Instructions


Questions & Answers

Have a Question?

Ask a Question
  • What is the length of the pre-formed corners?

    They are 10 inches each side of the 90 degree bend.

  • What is the difference between joining plates and spike nails that are included and the joining sleeve/hardware that has to be purchased separately? Are these the same? If I bought 4 sections with two corners to form a three walled box what do I need to purchase on top of that besides anchors?

    The spiked nails are long, spiked nails that go into the bottom lip of the edging into the ground to secure the edging.  5 per section are included in the price of the edging.

    Each section comes with the connector plates used to connect the edging together.  Also, included in the price of the edging.

    Joining Sleeves are used only when you need to cut the edging and then want to reconnect it.  When you cut the end off of the section, you have then cut off the pre-built in connector pieces.  Therefore, you would need a joining sleeve in order to reconnect it.  If you are not making an cuts, then you don't need a joining sleeve.

    In your example:  4 panels and 2 corners (with no cuts) the only thing you need to purchase are the sections and anchors posts.  2 per section recommended.
    (4) 7'sections
    (2) Corners
    (8) Anchor Posts

  • Can you cut Straightcurve’s 9.5” Ridgid weather steel to a desire length?

    Yes, an angle grinder is recommended to cut the edging.  If you cut the edging and then need to reconnect it (if you've cut off the built in connectors) then you would need a joining sleeve.  See video demo below.

    When to use a joining sleeve

  • Can I shorten on ridgid steel edging and form a 90 degree corner ?

    Yes, to make a 90 degre corner, you would need to use an angle grinder to make an intermittent score line and use a mallet to hammer into place.  Please see the below video for reference.  To shorten the edging, an angle grinder is recommended as well.

    how to make a corner with the 9.5" edging


Customer Reviews

Based on 1 review
Great Product

We have been looking to cut back on grass in our front yard, did not want to build a retaining wall. Found Henderson Garden Supply online and their 9.5inch retaining steel wall is beautiful, secure, relatively easy to install. We are getting many compliments in the neighborhood. If we had questions about shipping or installation, the company was excellent with communication. Will use this company and product again for future!
